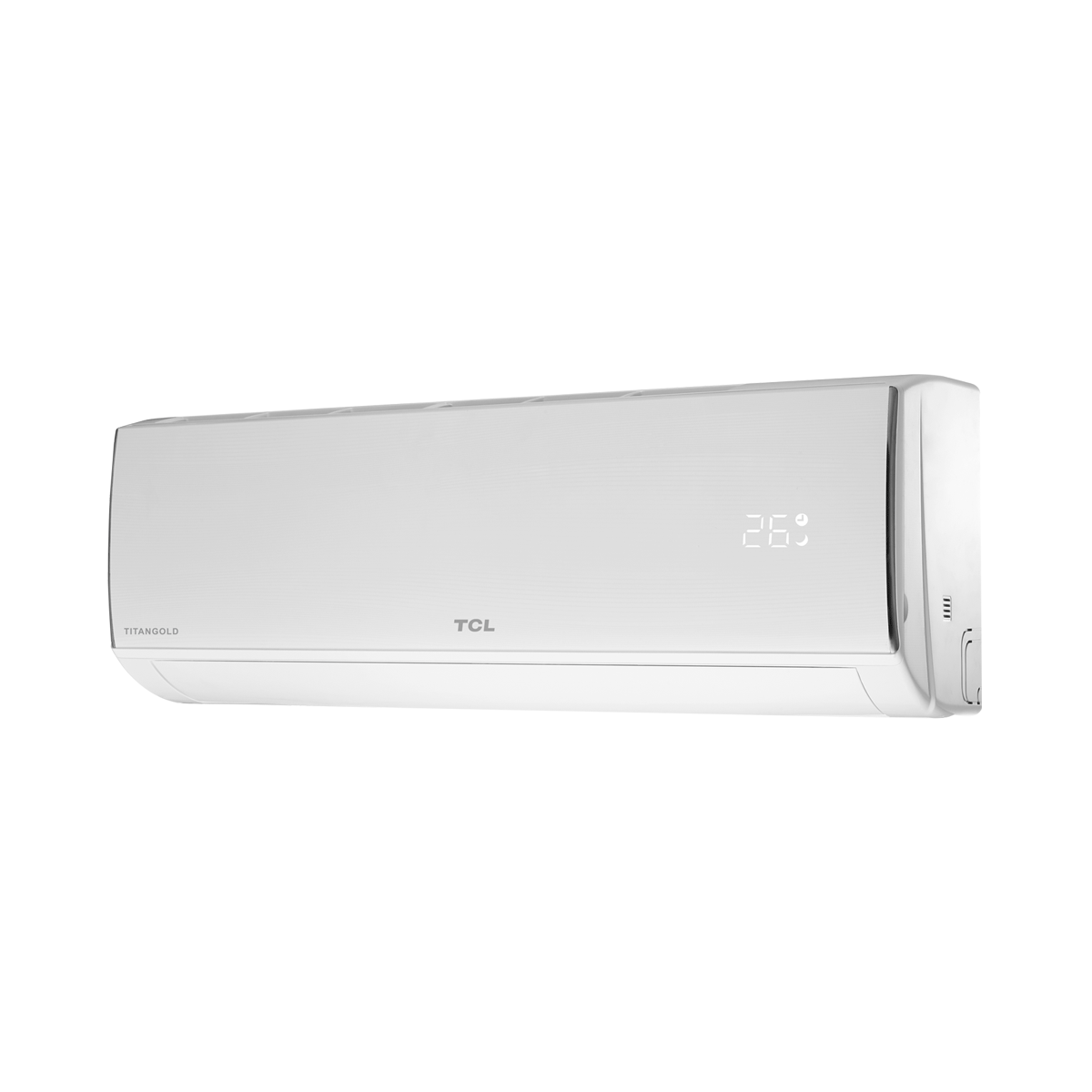

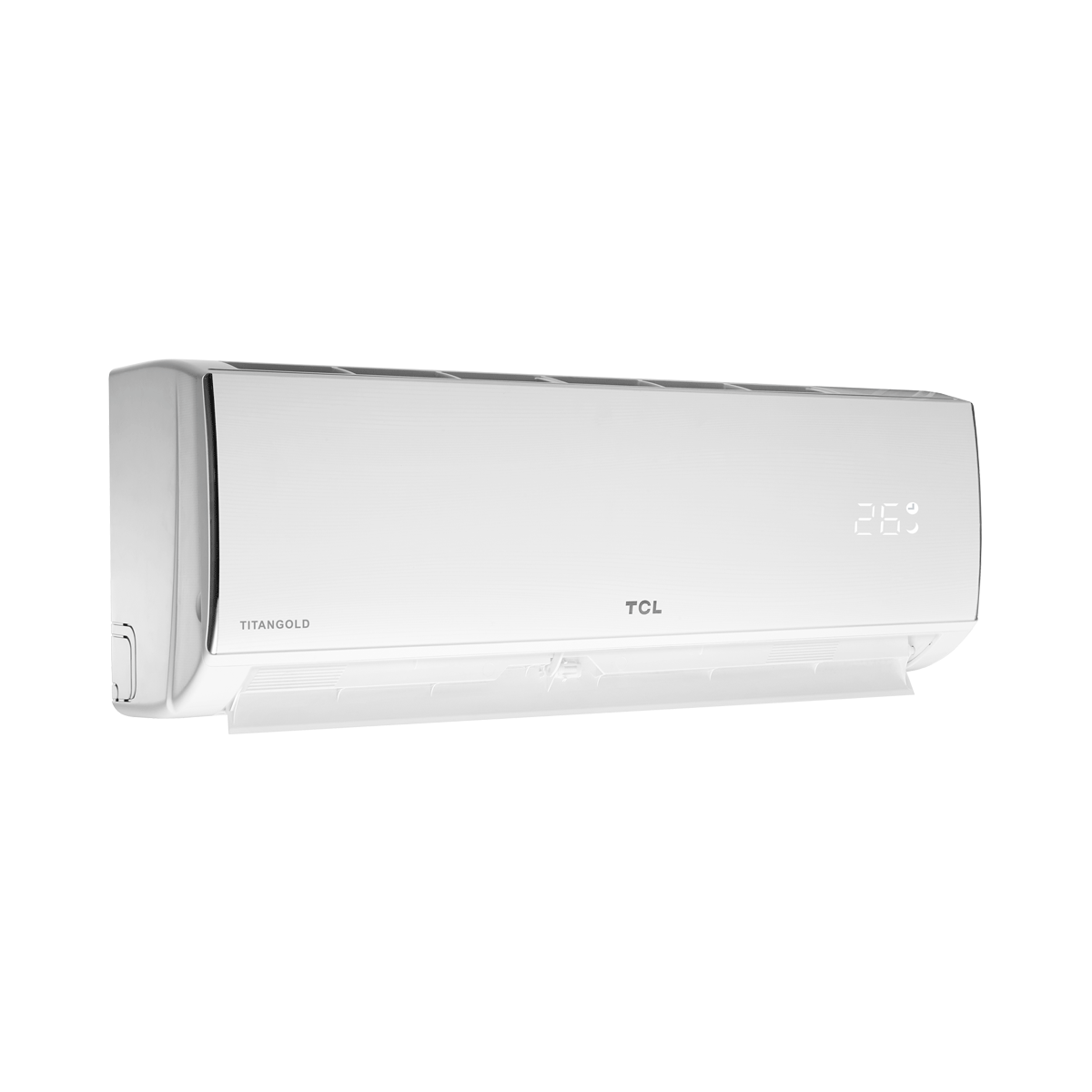

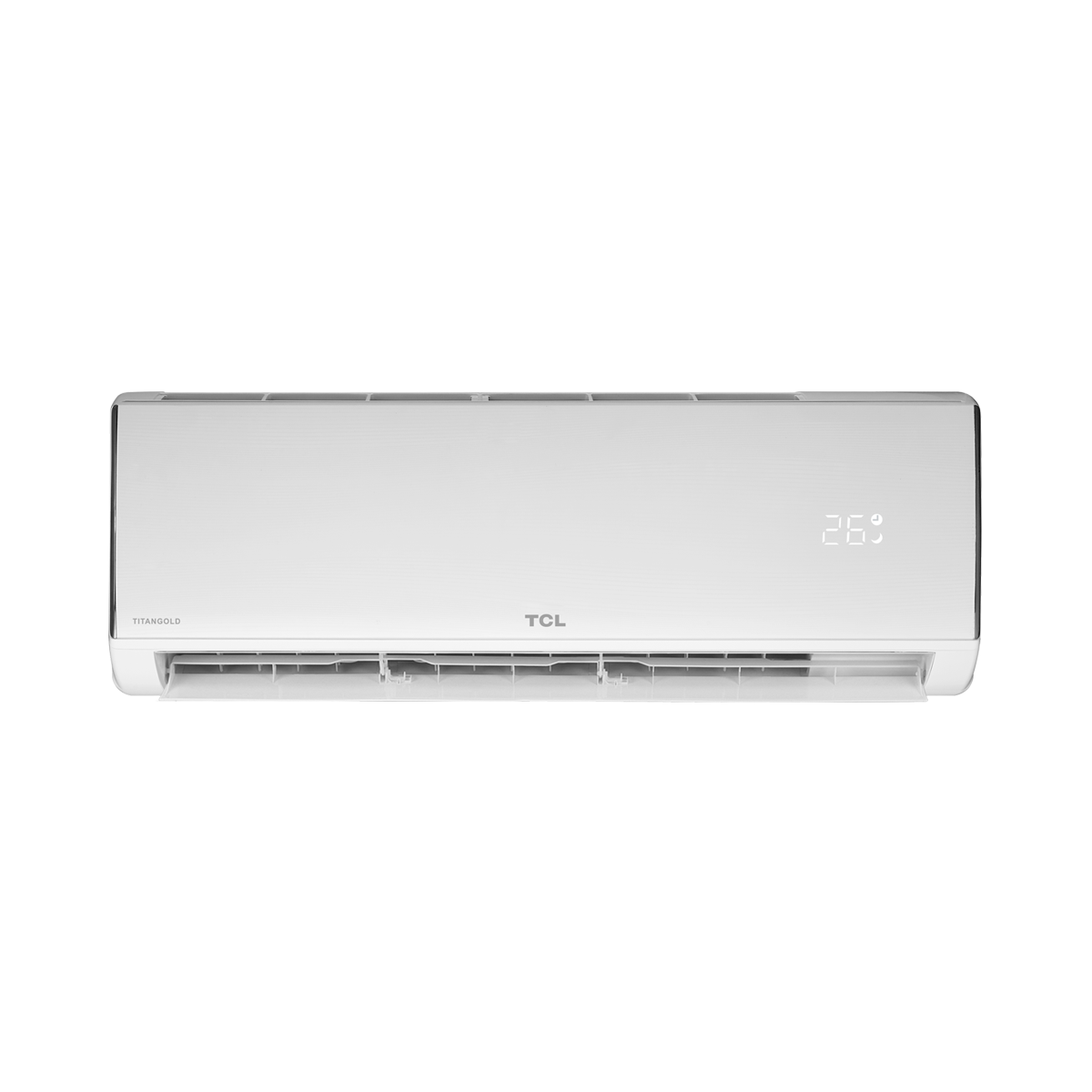

Wall Mounted AC 12,000 Btu/h Tropical Compressor T3

TCLModel: TAC-12CHS/XA
Price (USD):
$340
Price (IQD):
ع.د459,000
Stock:
Sold out
Rated Capacity:
12000 Btu/h

Technical specifications

Key Features
4 Ways Airflow
Filter-Cleaning Reminder
Tropical Compressor T3
TitanGold fins
Auto Restart
Cooling & Heating
Capacity / Type
Cooling Capacity Max-Min (Btu/h): 12000-10500
Cooling Capacity Max-Min (W): 3520-3077
Type: Heating Capacity (W): 3664
Type: Heat Type: Compressor
Type: Type: Cooling & Heating
Energy Efficiency
Energy Efficiency Class : B class
Cooling EER T1 (Btu/h): 10.7
Cooling EER T1 (W): 3.14
Cooling EER T3 (Btu/h): 7.9
Cooling EER T3 (W): 2.32
Heating COP (Btu/h): 11.8
Electrical / Technical
Power Supply: 220V-240V~1 Phase/ 50Hz
Current CoolingT1,T3/Heating: 5.0A/6.0A/4.7A
Power Input CoolingT1,T3/Heating: 1121W/1329W/1059W
Rated Current CoolingT1,T3/Heating:  6.5A/7.7A/6.2A
Rated Power Input CoolingT1,T3/Heating:
1458W/1728W/1377W
Annual Energy Consumption (Kwh/Year): 2654
Suitable Area (m2): 15-23
Refrigerant/Charge: R22
Compressor Type: Rotary On/Off
Compressor Climate: Tropical Conditions (T3)
Evaporator: TitanGold Hydrophilic Gold Fins
Condenser: TitanGold Hydrophilic Gold Fins
Pipe Material: Pure Cooper Pipe
Indoor Fan Speed H/M/L
Indoor Air Volume (Cooling/Heating) m3/h: 850/850
Cooling (Rpm): 1270/1170/1050/900/850
Dry (Rpm): 900
Sleep (Rpm): 900/950
Connections
Connecting Pipe Gas (Inch): Φ9(3/8'')
Connecting Pipe Liquid (Inch): Φ6(1/4'')
Noise Level
Indoor Noise Level Super/High/Med/Low/Quite dB(A):  37dB(A)/35dB(A)/33dB(A)/32dB(A)/30dB(A)
Outdoor Noise Level dB(A): 52dB(A)
Physical Specification
 Indoor Packing Dimension (WxDxH): 850x320x275
Outdoor Packing Dimension (WxDxH): 858x356x585
Indoor Net Dimension (WxDxH): 777×250×201
Outdoor Net Dimension (WxDxH): 817×328×553
Indoor Packing Weight: 11Kg
Outdoor Packing Weight: 34Kg
Indoor Net Weight: 8Kg
Outdoor Net Weight: 30Kg
Air Purification
Plasma Generator: No
Silver Ion Filter: No
Air Filter (Standard):  Yes
Anti Bacteria:  Yes
Convenience
Smart WiFi: No
Auto Restart: Yes
Airflow: 4 Ways
Product Climate: Tropical Climate T3
Product Condition: Works at High Temperature
I Feel Feature: Yes
Refrigerant Leakage Detection: Yes
Filter Cleaning Reminder: Yes Code (CL)
Indoor Temp. Display: Yes
Display On/Off: Yes
Beep Tone: Yes
24-Hour Timer: Yes
Dual-Drainage: Yes
Exterior
Indoor Display: Yes
Control Type: Remote Controlle
Indoor Surface: Easy Clean Plastic Panel
Color: White Design
Outdoor Material/Type: Anti Corrotion Metal Plate
Outdoor Protection Gills: Yes Front/Back/Sides
Accessories
Connection Pipe: 4m Cooper Pipe
Vinyl Tape/Sealing Clay/Drainage Pipe/Screw Foam Pipe:
All Included
Extra Filter: One Set
Wall Bracket Indoor Unit: Yes
Warranty
Product:  2 Year
Compressor: 2 Year
Capacity / Type
Cooling Capacity Max-Min (Btu/h): 12000-10500
Cooling Capacity Max-Min (W): 3520-3077
Type: Heating Capacity (W): 3664
Type: Heat Type: Compressor
Type: Type: Cooling & Heating
Electrical / Technical
Power Supply: 220V-240V~1 Phase/ 50Hz
Current CoolingT1,T3/Heating: 5.0A/6.0A/4.7A
Power Input CoolingT1,T3/Heating: 1121W/1329W/1059W
Rated Current CoolingT1,T3/Heating:  6.5A/7.7A/6.2A
Rated Power Input CoolingT1,T3/Heating:
1458W/1728W/1377W
Annual Energy Consumption (Kwh/Year): 2654
Suitable Area (m2): 15-23
Refrigerant/Charge: R22
Compressor Type: Rotary On/Off
Compressor Climate: Tropical Conditions (T3)
Evaporator: TitanGold Hydrophilic Gold Fins
Condenser: TitanGold Hydrophilic Gold Fins
Pipe Material: Pure Cooper Pipe
Connections
Connecting Pipe Gas (Inch): Φ9(3/8'')
Connecting Pipe Liquid (Inch): Φ6(1/4'')
Physical Specification
 Indoor Packing Dimension (WxDxH): 850x320x275
Outdoor Packing Dimension (WxDxH): 858x356x585
Indoor Net Dimension (WxDxH): 777×250×201
Outdoor Net Dimension (WxDxH): 817×328×553
Indoor Packing Weight: 11Kg
Outdoor Packing Weight: 34Kg
Indoor Net Weight: 8Kg
Outdoor Net Weight: 30Kg
Convenience
Smart WiFi: No
Auto Restart: Yes
Airflow: 4 Ways
Product Climate: Tropical Climate T3
Product Condition: Works at High Temperature
I Feel Feature: Yes
Refrigerant Leakage Detection: Yes
Filter Cleaning Reminder: Yes Code (CL)
Indoor Temp. Display: Yes
Display On/Off: Yes
Beep Tone: Yes
24-Hour Timer: Yes
Dual-Drainage: Yes
Accessories
Connection Pipe: 4m Cooper Pipe
Vinyl Tape/Sealing Clay/Drainage Pipe/Screw Foam Pipe:
All Included
Extra Filter: One Set
Wall Bracket Indoor Unit: Yes
Energy Efficiency
Energy Efficiency Class : B class
Cooling EER T1 (Btu/h): 10.7
Cooling EER T1 (W): 3.14
Cooling EER T3 (Btu/h): 7.9
Cooling EER T3 (W): 2.32
Heating COP (Btu/h): 11.8
Indoor Fan Speed H/M/L
Indoor Air Volume (Cooling/Heating) m3/h: 850/850
Cooling (Rpm): 1270/1170/1050/900/850
Dry (Rpm): 900
Sleep (Rpm): 900/950
Noise Level
Indoor Noise Level Super/High/Med/Low/Quite dB(A):  37dB(A)/35dB(A)/33dB(A)/32dB(A)/30dB(A)
Outdoor Noise Level dB(A): 52dB(A)
Air Purification
Plasma Generator: No
Silver Ion Filter: No
Air Filter (Standard):  Yes
Anti Bacteria:  Yes
Exterior
Indoor Display: Yes
Control Type: Remote Controlle
Indoor Surface: Easy Clean Plastic Panel
Color: White Design
Outdoor Material/Type: Anti Corrotion Metal Plate
Outdoor Protection Gills: Yes Front/Back/Sides
Warranty
Product:  2 Year
Compressor: 2 Year

4 Ways Airflow

Filter-Cleaning Reminder

Tropical Compressor T3

TitanGold fins

Auto Restart

Cooling & Heating

You cannot add more than $4,000 to your cart.

Stay Cool in Any Room

4-Way Airflow

4-way airflow function provides users a wide range of comfortable air.

Auto Restart

After being turned off or in case of an accidental power cut, the air conditioners are able to retain and restore the temperature and other settings when it is turn on again or the power supply is resumed.

Environment Friendly

A new refrigerant that can convey heat efficiency. It has lower GWP and is remarkable for its low environment impact.

Tropical Compressor T3

Specially designed for the hot weather areas where the temperature reaches over 60 degrees celcius.

Plasma Function

Plasma is a module that ionizes the air by positive and negative high voltage electrodes simultaneously.

Filter Cleaning Reminder

After running for a particular period, the air-con will automatically detect the cleanliness of the filter and remind users of filter cleaning to avoid too much bacteria being accumulated on the filters and provide users with healthy air.
