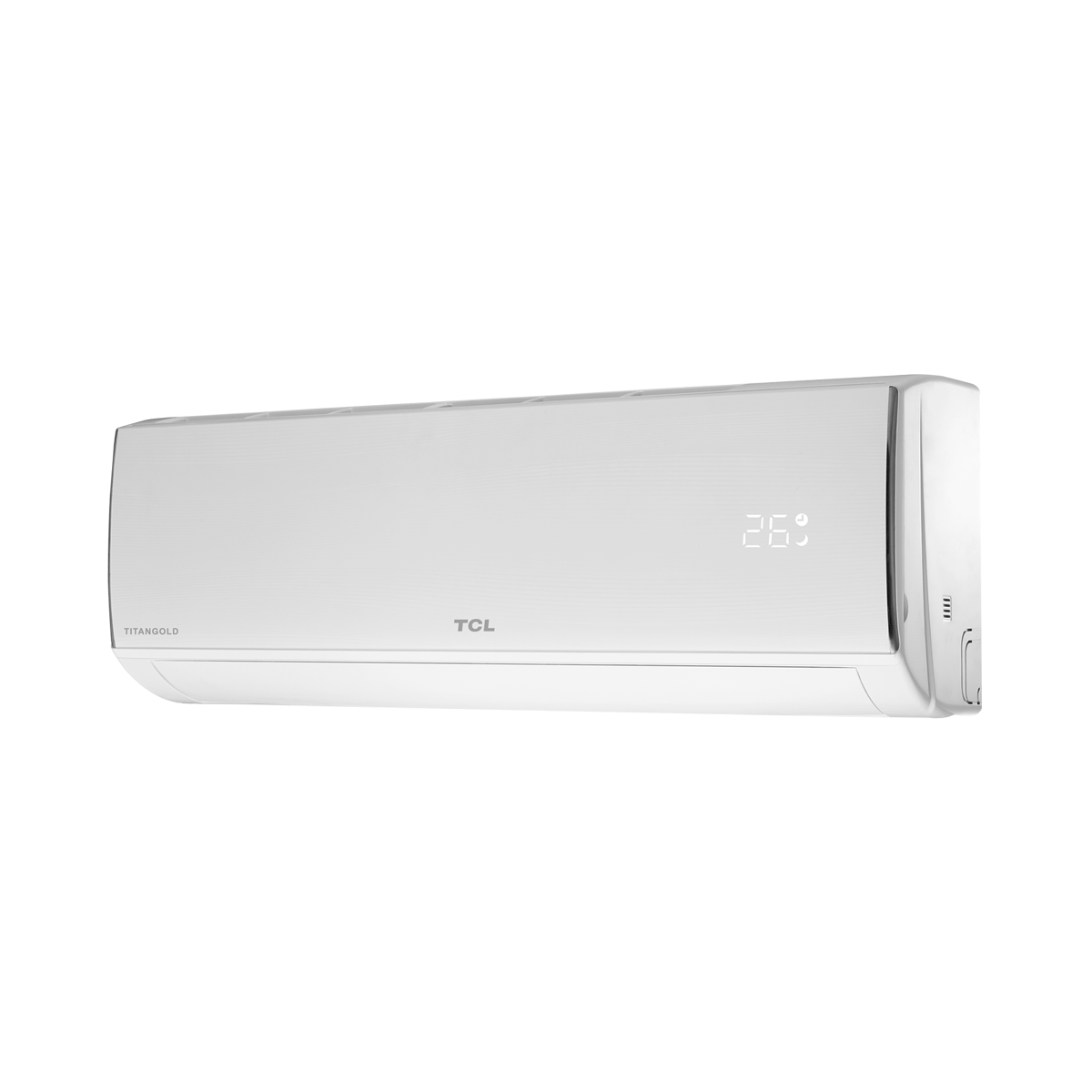

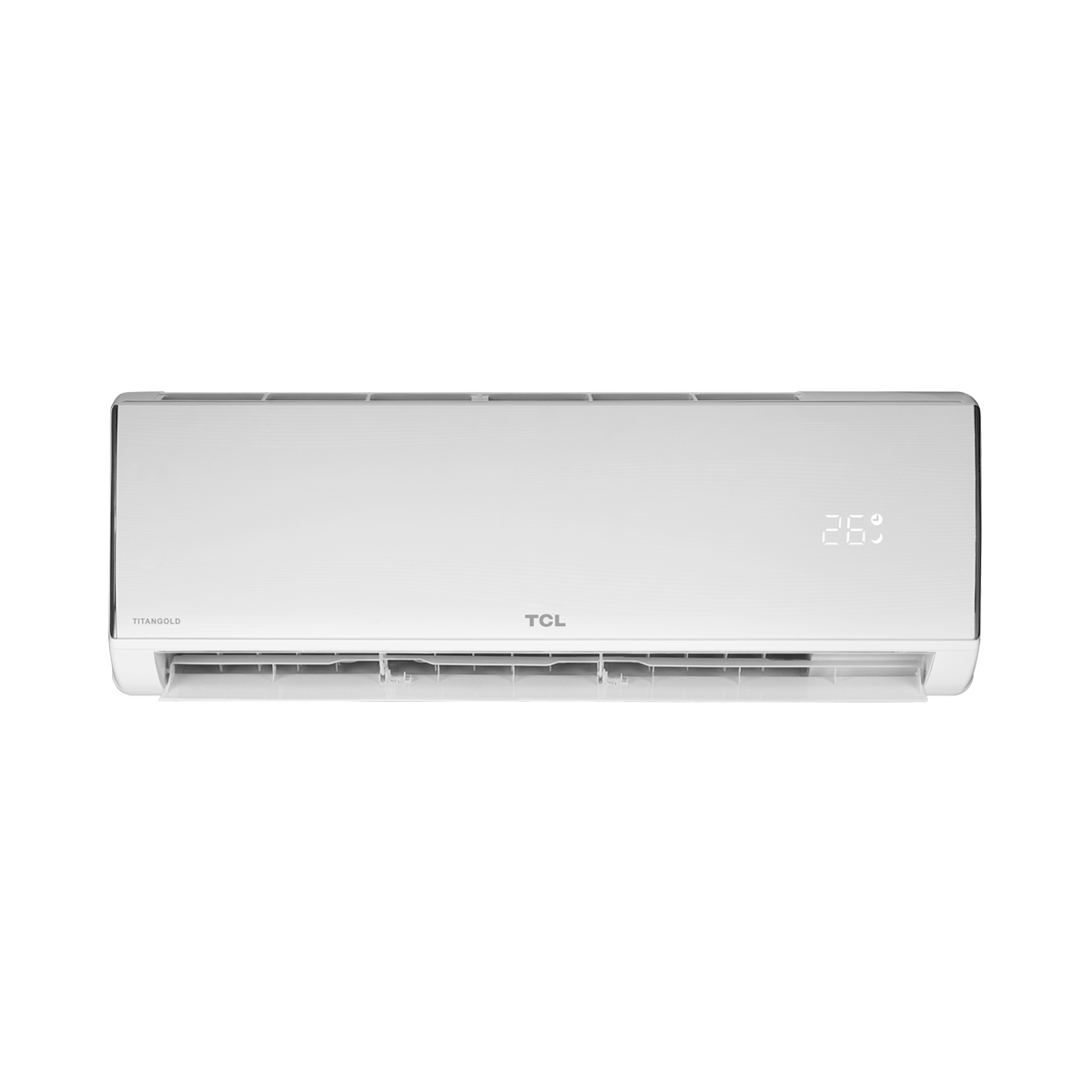

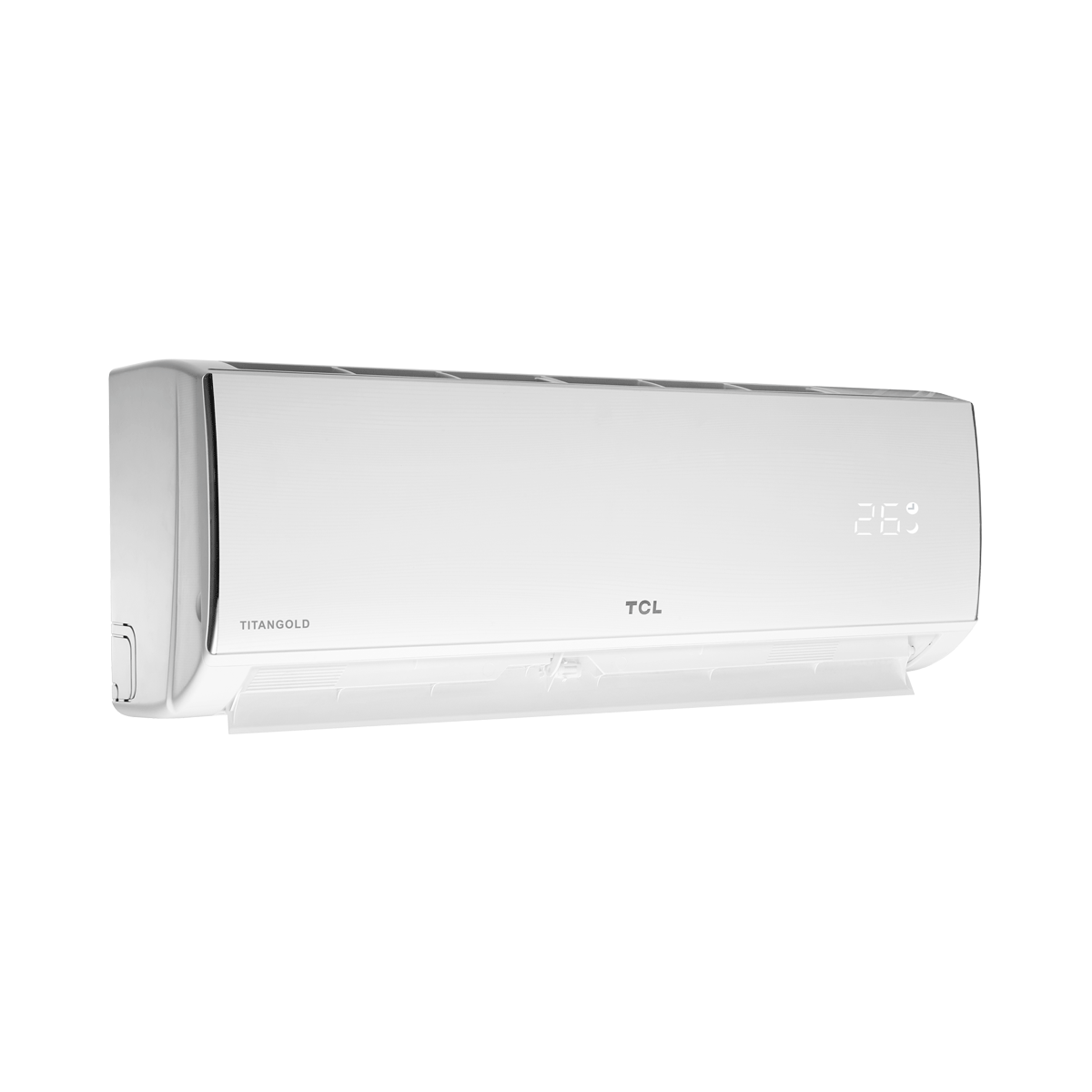

TAC-18CHS/XA Wall Mounted AC 18,000 Btu/h Tropical Compressor T3

TCLModel: TAC-18CHS/XA
Price (USD):
$465
Price (IQD):
ع.د627,750
Stock:
Sold out
Rated Capacity:
18000 Btu/h

Technical specifications

Key Features
4 Ways Airflow
Filter-Cleaning Reminder
Tropical Compressor T3
TitanGold fins
Auto Restart
Cooling Only
Capacity / Type
Cooling Capacity Max-Min (Btu/h): 18000-15750
Cooling Capacity Max-Min (W): 5275-4616
Type: Cooling Only
Energy Efficiency
Energy Efficiency Class : B class
Cooling EER T1 (Btu/h): 10.7
Cooling EER T1 (W): 3.14
Cooling EER T3 (Btu/h): 7.9
Cooling EER T3 (W): 2.32
Electrical / Technical
Power Supply: 220V-240V~1 Phase/ 50Hz
Current CoolingT1,T3/Heating: 7.5A/8.9A/NA
Power Input CoolingT1,T3/Heating: 1682W/1994W/NA
Rated Current CoolingT1,T3/Heating:  9.8A/11.6A/NA
Rated Power Input CoolingT1,T3/Heating:
2187W/2592W/NA
Annual Energy Consumption (Kwh/Year): 3028
Suitable Area (m2): 20-35
Refrigerant/Charge: R22
Compressor Type: Rotary On/Off
Compressor Climate: Tropical Conditions (T3)
Evaporator: TitanGold Hydrophilic Gold Fins
Condenser: TitanGold Hydrophilic Gold Fins
Pipe Material: Pure Cooper Pipe
Indoor Fan Speed H/M/L
Indoor Air Volume (Cooling/Heating) m3/h: 1050/NA
Cooling (Rpm): 1280/1200/1050/900/780
Dry (Rpm): 900
Sleep (Rpm): 900/900
Connections
Connecting Pipe Gas (Inch): Φ15.88(7/8'')
Connecting Pipe Liquid (Inch): Φ6(7/16'')
Noise Level
Indoor Noise Level Super/High/Med/Low/Quite dB(A):  52dB(A)/49dB(A)/46dB(A)/38dB(A)/36dB(A)
Outdoor Noise Level dB(A): 54dB(A)
Physical Specification
 Indoor Packing Dimension (WxDxH): 1096×390×297
Outdoor Packing Dimension (WxDxH): 910×392×633
Indoor Net Dimension (WxDxH): 1010×315×220
Outdoor Net Dimension (WxDxH): 886×357×605
Indoor Packing Weight: 16Kg
Outdoor Packing Weight: 50Kg
Indoor Net Weight: 13Kg
Outdoor Net Weight: 43Kg
Air Purification
Plasma Generator: No
Silver Ion Filter: No
Air Filter (Standard):  Yes
Anti Bacteria:  Yes
Convenience
Smart WiFi: No
Auto Restart: Yes
Airflow: 4 Ways
Product Climate: Tropical Climate T3
Product Condition: Works at High Temperature
I Feel Feature: Yes
Refrigerant Leakage Detection: Yes
Filter Cleaning Reminder: Yes Code (CL)
Indoor Temp. Display: Yes
Display On/Off: Yes
Beep Tone: Yes
24-Hour Timer: Yes
Dual-Drainage: Yes
Exterior
Indoor Display: Yes
Control Type: Remote Controlle
Indoor Surface: Easy Clean Plastic Panel
Color: White Design
Outdoor Material/Type: Anti Corrotion Metal Plate
Outdoor Protection Gills: Yes Front/Back/Sides
Accessories
Connection Pipe: 4m Cooper Pipe
Vinyl Tape/Sealing Clay/Drainage Pipe/Screw Foam Pipe:
All Included
Extra Filter: One Set
Wall Bracket Indoor Unit: Yes
Warranty
Product:  2 Year
Compressor: 2 Year
Capacity / Type
Cooling Capacity Max-Min (Btu/h): 18000-15750
Cooling Capacity Max-Min (W): 5275-4616
Type: Cooling Only
Electrical / Technical
Power Supply: 220V-240V~1 Phase/ 50Hz
Current CoolingT1,T3/Heating: 7.5A/8.9A/NA
Power Input CoolingT1,T3/Heating: 1682W/1994W/NA
Rated Current CoolingT1,T3/Heating:  9.8A/11.6A/NA
Rated Power Input CoolingT1,T3/Heating:
2187W/2592W/NA
Annual Energy Consumption (Kwh/Year): 3028
Suitable Area (m2): 20-35
Refrigerant/Charge: R22
Compressor Type: Rotary On/Off
Compressor Climate: Tropical Conditions (T3)
Evaporator: TitanGold Hydrophilic Gold Fins
Condenser: TitanGold Hydrophilic Gold Fins
Pipe Material: Pure Cooper Pipe
Connections
Connecting Pipe Gas (Inch): Φ15.88(7/8'')
Connecting Pipe Liquid (Inch): Φ6(7/16'')
Physical Specification
 Indoor Packing Dimension (WxDxH): 1096×390×297
Outdoor Packing Dimension (WxDxH): 910×392×633
Indoor Net Dimension (WxDxH): 1010×315×220
Outdoor Net Dimension (WxDxH): 886×357×605
Indoor Packing Weight: 16Kg
Outdoor Packing Weight: 50Kg
Indoor Net Weight: 13Kg
Outdoor Net Weight: 43Kg
Convenience
Smart WiFi: No
Auto Restart: Yes
Airflow: 4 Ways
Product Climate: Tropical Climate T3
Product Condition: Works at High Temperature
I Feel Feature: Yes
Refrigerant Leakage Detection: Yes
Filter Cleaning Reminder: Yes Code (CL)
Indoor Temp. Display: Yes
Display On/Off: Yes
Beep Tone: Yes
24-Hour Timer: Yes
Dual-Drainage: Yes
Accessories
Connection Pipe: 4m Cooper Pipe
Vinyl Tape/Sealing Clay/Drainage Pipe/Screw Foam Pipe:
All Included
Extra Filter: One Set
Wall Bracket Indoor Unit: Yes
Energy Efficiency
Energy Efficiency Class : B class
Cooling EER T1 (Btu/h): 10.7
Cooling EER T1 (W): 3.14
Cooling EER T3 (Btu/h): 7.9
Cooling EER T3 (W): 2.32
Indoor Fan Speed H/M/L
Indoor Air Volume (Cooling/Heating) m3/h: 1050/NA
Cooling (Rpm): 1280/1200/1050/900/780
Dry (Rpm): 900
Sleep (Rpm): 900/900
Noise Level
Indoor Noise Level Super/High/Med/Low/Quite dB(A):  52dB(A)/49dB(A)/46dB(A)/38dB(A)/36dB(A)
Outdoor Noise Level dB(A): 54dB(A)
Air Purification
Plasma Generator: No
Silver Ion Filter: No
Air Filter (Standard):  Yes
Anti Bacteria:  Yes
Exterior
Indoor Display: Yes
Control Type: Remote Controlle
Indoor Surface: Easy Clean Plastic Panel
Color: White Design
Outdoor Material/Type: Anti Corrotion Metal Plate
Outdoor Protection Gills: Yes Front/Back/Sides
Warranty
Product:  2 Year
Compressor: 2 Year

4 Ways Airflow

Filter-Cleaning Reminder

Tropical Compressor T3

TitanGold fins

Auto Restart

Cooling Only

You cannot add more than $4,000 to your cart.

Stay Cool in Any Room

4-Way Airflow

4-way airflow function provides users a wide range of comfortable air.

Auto Restart

After being turned off or in case of an accidental power cut, the air conditioners are able to retain and restore the temperature and other settings when it is turn on again or the power supply is resumed.

Environment Friendly

A new refrigerant that can convey heat efficiency. It has lower GWP and is remarkable for its low environment impact.

Tropical Compressor T3

Specially designed for the hot weather areas where the temperature reaches over 60 degrees celcius.

Plasma Function

Plasma is a module that ionizes the air by positive and negative high voltage electrodes simultaneously.
